ZEBRA D/TOP ZD220D 203DPI D/T USB AU

Code: SEKHAR0002

The ZD220 price is available on request. We also suggest the TSC DA210.

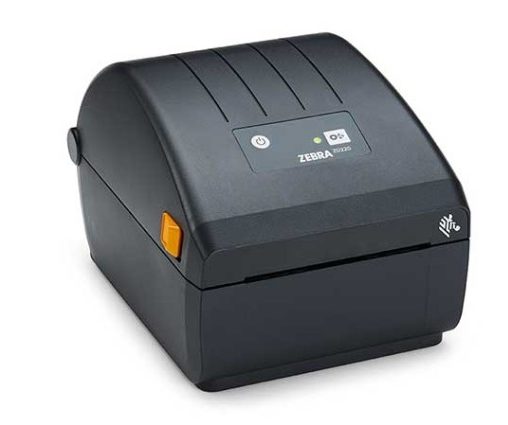

Zebra ZD220D Direct Thermal Printer

The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STAR® qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.

Compact Design Filled with Powerful Features.

The ZD220 is simple to install and begin printing – right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra’s OpenACCESS™ clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.

Ideal for these applications:

Government - documents management, evidence tracking
Healthcare - laboratory specimen and blood bank labeling
Retail - price labeling and receipt printing
Manufacturing - light-industrial work-in-process, product and shipping labeling
Transportation & Logistics - boarding tickets, bag tags, parking passes

Standard Features:

Thermal Transfer or Direct Thermal print method
ZPL and EPL programming languages
Single LED status indicator
Single button for feed/pause
USB connectivity
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR qualified

Resolution

203 dpi/8 dots per mm

Memory

256 MB Flash, 128 MB SDRAM (standard)

Print width

104 mm

Print length

991 mm

Print speed

102 mm per second maximum

Media sensors

Transmissive and reflective sensors

Media characteristics

Maximum Label Length 39.0 in./991 mm
Media Width 1.00 in. / 25.4 mm to 4.4 in. / 112 mm
Media Roll Size 5.00 in./127 mm outer diameter Core
inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm)
standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm)
using optional adapters
Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm)
max. (tear-off mode only)
Media Types
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter
1.34 in./ 34 mm (74 m)
Maximum Ribbon Length 244 ft. (74 m)
Ribbon Ratio 1:1 media to ribbon (74 m)
Ribbon Width 1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm
Ribbon Core I.D. 74 Meter ribbon 0.5 in./ 12.7 mm

Operating characteristics

Environmental

Operating Temperature: 40° F/5° C to 105° F/ 41° C
Storage/Transport Environment:-40° F/-40° C to 140° F/60° C
Operating humidity: 10% to 90% non-condensing RH
Storage humidity: 5% to 95% non-condensing RH

Agency approvals

TUV-R NRTL, TUV-R CB, NOM, KCC, CE, FCC Class-B

Physical characteristics

Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H

Direct Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H

Options and accessories

Peel – a front-mount, passive-peel with no take-up spindle
Peel – a front-mount, passive-peel with liner take-up spindle (factory-fitonly)
Cutter – a front-mount guillotine cutter
Real-time clock (RTC)
Keyboard Display Unit (KDU)

Optional software

ZebraDesigner™ Pro—An intuitive, easy-to-use software program for creating complex label designs (option)
ZebraDesigner—Offers basic features for simple label design
ZebraDesigner Driver—The most powerful driver available from Zebra

Communication and interface capabilities

Centronics® parallel (36 pin) connector ports
RS-232 Serial interface
USB V1.1 interface, bi-directional

Firmware

ZPL II® - Zebra Programming Language provides sophisticated label formatting and printer control.
EPL2™—Eltron Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications

Barcode symbologies

Bar Code Ratios: 2:1 (non-rotated) and 3:1
Linear Bar Codes: Code 11, Code 39, Code 93, Code 128A, B & C (User selectable/Auto), UCC/EAN-128, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E with 2 and 5 add on, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar™ (formerly RSS), Postnet (5, 9, 11 & 13 digit) Japanese Postnet, Plessey (MSI-1), MSI-3, German Post Code, RSS-14 (limited, truncated, stacked).
2-Dimensional: PDF417 (MicroPDF-417 and MacroPDF-417), Code 49, Maxicode, Codablock, Data Matrix, QR code, and Aztec

Fonts and graphics

16 resident expandable ZPL fonts
One resident scalable ZPL font
5 resident expandable EPL2 fonts
Supports user-defined fonts and graphics - including custom logos

Electrical specifications

Auto-ranging external power supply with C7 type connector
Output: 20 VDC, 2.5A
Input: 100-240 VAC, 50-60 Hz

Please Note: specifications and options vary according to printer model and are subject to change without prior notice.
