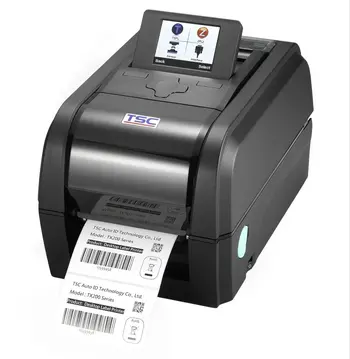

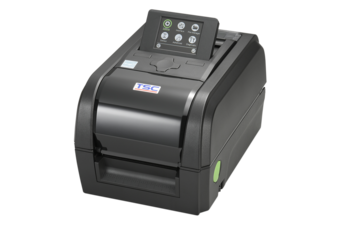

TSC TX600 Thermal Transfer Printer
Download pdf Brochure (848 KB)TSC TX600 Thermal Transfer Barcode Printer
Discontinued Model - Please see the TX610
The TX600 is the culmination of 23 years of designing best-selling high-performance and durable desktop printers. The printers use a large 300 meter ribbon supply on a one inch core that saves both time and money. The TX600 features a user-friendly spring-loaded center-biased clamshell design for easy drop-in media loading of 5-inch rolls of media. The printer construction features a rugged double-wall design that is stronger and more durable than other thermal transfer mechanisms on the market. Its strong motor is powerful enough to handle a 300-meter-long ribbon.
Standard interfaces include USB 2.0, USB-A Host, 10/100 Mbps Ethernet and Serial connectivity. Optional communications interfaces include Bluetooth, 802.11b/g/n WiFi and Centronic Parallel. Printer options include a bright, color LCD display, label peel and present, and cutter.
As with all TSC printers, the TX600 features the TSPL-EZ™ printer-control language, which is fully compatible with other TSC printer languages, while supporting TPLE (Translation Printer Language Eltron®) and TPLZ (Translation Printer Language Zebra®). The languages automatically decipher and translate the format of each label as it is sent to the printer. TSPL-EZ™ also features internal scalable True Type fonts (based on the Monotype® font engine), which are typically found only in more expensive printers.
Printer Specifications include:
| Model | Printing Method | Resolution | Max. Print Width | Max. Print Length | Max. Print Speed |
| TX200 | Thermal Transfer | 203 dpi | 4.25" | 1,000" | 8 ips |
| TX300 | Thermal Transfer | 300 dpi | 4.17" | 450" | 6 ips |
| TX600 | Thermal Transfer | 600 dpi | 4.17" | 100" | 4 ips |
Features
- Up to 203 mm (8”) per sec. print speed
- 128 MB Flash memory and 128 MB SDRAM memory
- microSD Flash memory expansion up to 32 GB
- User-friendly clamshell design
- Serial, internal Ethernet, USB 2.0 & USB host interfaces standard
- 3.5” color TFT Display (Standard for TX600, Optional for TX200 & TX300)
- Label capacity up to 127 mm (5”) OD
- Ribbon capacity up to 300 m (984’)
- TSPL-EZ™ firmware for plug-n-play ease
- Optional peel-off module, cutter module, external Bluetooth module, external 802.11 b/g/n wireless module, stand-alone keyboard
- ENERGY STAR® qualified
