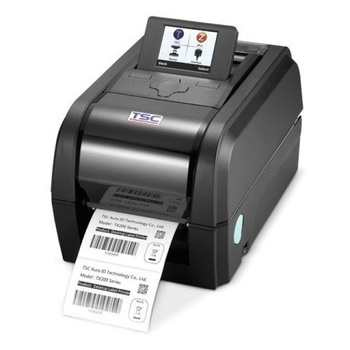

TSC TX310 Thermal Transfer Printer
Download pdf Brochure (653 KB)TSC TX310 Thermal Transfer Barcode Printer
The TX310 series is comprised of high-performance desktop label printers designed to handle a wide variety of applications ranging from
high-volume shipping label production to safety signage and fine-jewelry label printing.
The TX310 series features a user friendly design, media and ribbons are easy to install. The printers use a large 300 meter ribbon supply on
a one inch core that saves both time and money. The TX310 Series can print at super-fast print speeds up to 8-inches per second with an
easy-to-read multi-icon LED display (standard) and available in a color LCD display.
Supports more applications in its class including standalone, high-resolution 600 dpi product marking and graphics, and specialized
electronics label marking applications. The TX310 series with built-in Ethernet or optional 802.11 a/b/g/n/ac Wi-Fi paired with SOTI
Connect and TSC Console remote printer management increases your level of productivity and efficiency.
Key Features:
Dynamic Remote Printer Management
- Supports SOTI Connect through either Ethernet or Wi-Fi
- Powerful TSC Console for printer managemen
Rugged Design
- Rugged design with solid double wall housing structure, ADF hinge and industrial-grade hybrid motor ensures stable media path for outstanding print quality and accuracy
Multi-Connectivity
- Wi-Fi enterprise certified 802.11 a/b/g/n/ac with Bluetooth 4.2 combo module
- MFi certified Bluetooth 5.0
Easy-to-Use UI
- LED icon panel with large status icons
- View angle adjustable 3.5” color LCD display
- Automatic centering label holder for 5” OD media roll with 1” or 1.5” core
- Enhanced ribbon stop mechanism prevents ribbon rewind issues when top cover is opened
Advanced TPH Mechanism
- Heat line adjustment mechanism supports various media types
- Self-Diagnostic TPH Care scans and detects printhead bad dots in real-time
- Business/Office
- Product Marking
- Compliance Labeling
- Asset Tracking
- Document Management
- Shelf-Labeling
- Shipping/Receiving
- Specimen Labeling
- Inventory Control
- Patient Tracking
Printer Specifications include:
| Model | TX310 | |
| Print Specification | Resolution | 12 dots/mm (300 DPI) |
| Max. print speed | 105 mm (6")/second | |
| Max. print width | 106 mm (4.17") | |
| Max. print length | 11,430 mm (450") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | LED panel with 8 big icons |
| Memory | SDRAM | 128 MB |
| Flash | 128 MB | |
| Extension | microSD card reader for Flash memory expansion, up to 32 GB | |
| Ribbon & Media Capacity | Ribbon capacity | 300 m long, max. OD 67 mm, 1" core (ink coated outside) |
| Ribbon width | 40 mm ~ 110 mm (1.6" ~ 4.3") | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch (outside wound) | |
| Media width | 19 ~112 mm (0.75" ~ 4.4") | |
| Media thickness | 0.055 ~ 0.254 mm (2.17 ~ 10 mil) | |
| Media core diameter | 25.4 ~ 38.1 mm (1" ~ 1.5") | |
| Media length | 3 ~ 25,400 mm (0.1" ~ 1,000") | |
| Media roll capacity | 127 mm (5") OD | |
| Interface | Standard | • USB 2.0 |
| • RS-232 | ||
| • Ethernet | ||
| • 10/100 Mbps | ||
| • USB Host | ||
| Options | • Parallel | |
|
802.11 a/b/g/n/ac Wi-Fi paired with SOTI Connect |
||
| Software Support | Software support | SAP, Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label |
| Physical characteristics | Dimension | 226 mm (W) x 198 mm (H) x 332 mm (D) |
| 8.90" (W) x 7.80" (H) x 13.07" (D) | ||
| Weight | 3.75 kg (8.27 lbs) | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 203 mm (8")/second | |
| Max. print width | 108 mm (4.25") | |
| Max. print length | 25,400 mm (1,000") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | LED panel with 8 big icons |
| Memory | SDRAM | 128 MB |
| Flash | 128 MB | |
| Extension | microSD card reader for Flash memory expansion, up to 32 GB | |
| Ribbon & Media Capacity | Ribbon capacity | 300 m long, max. OD 67 mm, 1" core (ink coated outside) |
| Ribbon width | 40 mm ~ 110 mm (1.6" ~ 4.3") | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch (outside wound) | |
| Media width | 19 ~112 mm (0.75" ~ 4.4") | |
| Media thickness | 0.055 ~ 0.254 mm (2.17 ~ 10 mil) | |
| Media core diameter | 25.4 ~ 38.1 mm (1" ~ 1.5") | |
| Media length | 3 ~ 25,400 mm (0.1" ~ 1,000") | |
| Media roll capacity | 127 mm (5") OD | |
| Interface | Standard | • USB 2.0 |
