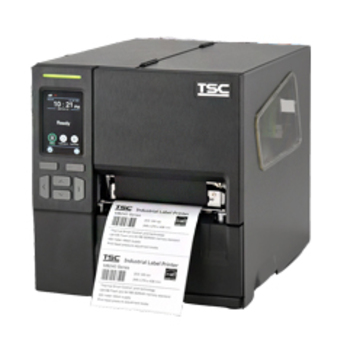

TSC MB241T Thermal Transfer Printer
Code: (LP)MB241T-A001-0004
$1498.20 (inc GST)
$1362.00 (exc GST)
$1362.00 (exc GST)
Qty:
Download pdf Brochure (3029 KB)TSC MB241 Barcode Label Printer
The TSC MB241T is a brand new smaller industrial barcode label printer that is designed to fit into more work areas than ever before. The MB241T features a compact footprint, durable and flexible design, ease of use, noise-reduced printing, self-diagnostic TPH Care and tool-less maintenance. The MB241T Series is available in 203 and 300 dpi print resolutions, has a 3.5” touch HVGA color LCD display and includes an ETH/LAN card. The printer incorporates a robust die-cast aluminum print mechanism engine that is ideal for light industrial duty printing.
Robust and Agile Design for Optimal Quality
The combination of rugged die cast, modularized base and adjustable TPH module design structure optimizes print quality.
Noise-Reduction Printing Engineering
With enhanced design and printing algorithm, the ML240 Series can achieve a significant reduction in the noise generated during printing operation.
Self-Diagnostic TPH Care Mechanism
The MB241T Series incorporates an advanced mechanism allowing for real-time printhead health status detection. It can stop printing errors to ensure stable and high quality printouts. Not having to reprint labels reduces cost and eliminates supplies waste.
Effortless User Operation with Color Display
The MB241T Series has a user friendly design providing a wide open angle for easy media handling. It's ease of use , has a 3.5” touch HVGA color LCD display and real-time LED indicator is designed to be intuitive making printer operation effortless.
One Step Maintenance
No tools are required to remove and replace both the printhead and platen roller, saving time for more important tasks.
APPLICATIONS:
- Warehouse & Logistics
- Packing
- Order Fulfilment
- Shipping/Receiving
- Inventory Management
- Manufacturing
- Work In Process
- Product Marking
- Compliance Labeling
- Healthcare
- Blood Test Tube Label
- Patient Wristband Label
- Retail
- Product Label
- Event Ticketing
Printer Specifications Include:
| Model | MB241T | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) |
| Max. print speed | 254 mm (10”)/second | |
| Max. print width | 108 mm (4.25") | |
| Max. print length | 2,540 mm (100") | |
| Printing method | Thermal Transfer & Direct Thermal | |
| LCD/LED | LCD/LED | • 1 status indicator |
| Memory | SDRAM | 16 MB |
| Flash | 8 MB | |
| Ribbon & Media Capacity | Ribbon capacity | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) |
| Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) | |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | |
| Media width | 20 ~ 118 mm (0.8" ~ 4.7") | |
| Media thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) | |
| Media core diameter | 25.4 mm ~ 76.2 mm (1” ~ 3”) | |
| Media length | 5 ~ 2,240 mm (0.2" ~ 100") | |
| Media roll capacity | 203.2 mm (8“) O.D., 1” to 3” I.D core | |
| Interface | Standard | • USB 2.0 |
| Options |
• Internal Bluetooth 4.2 MFi (factory option) • GPIO (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) |
|
| Software Support | Software support | Windows, Oracle, Microsoft SQL Server, BarTender, Nice Label |
| Physical characteristics | Dimension | 248 mm (W) x 274mm (H) x 436 mm (D) 9.76" (W) x 10.79" (H) x 17." (D) |
| Weight |
9.2 kg (20.28lbs) |
Standard Communications ETH/LAN
