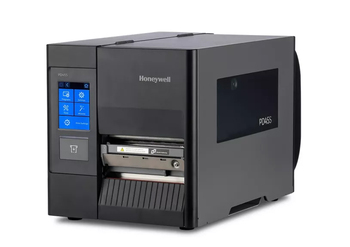

Honeywell Printer PD45S TT 203DPI ETH

Zoom

Code: PRHWPD45S0C0010000200

$1534.50 (inc GST)
$1395.00 (exc GST)

Qty:

Download pdf Brochure (2326 KB)

Description Specifications

Honeywell PD45S 203dpi Thermal Transfer Label Printer

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it convenient for ribbon and paper loading. This is also where spent liner can be conveniently collected and removed.

The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.

Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.

PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

Features and Benefits:

Rugged and Durable - Suitable for a large variety of working environments with all-metal frame structure.
Excellent performance - Advanced industrial print head ensures high printing quality and durable.
Patented Dual-sensor Positioning Technology - Ensuring the minimum width of 5mm and the position accuracy of ±0.5mm with the dynamic positioning function.
Easy to operate - Supporting one-key driver installation and facilitating printer cleaning and parts replacement.

PD45S Printer Specifications include:

Printing resolution:

203 dpi: 8 dots/mm

Printing speed:

203 dpi: 50 - 250 mm/s (2-10 ips)

Maximum width:

203 dpi: 108 mm (4.25 inches)

Maximum Continuous Print Length:

203 dpi: 4.8 m (15.75 inches)

Dimensions (L x H x W):

L: 438 mm x 270 mm x 249 mm

(17.24 in x 10.63 in x 9.80 in)

RIBBON SPECIFICATIONS

Ribbon supporting:

Inner carbon or outer carbon

Maximum roll diameter:

80 mm (3.15 inches), about 450 m (1,476 feet)

Roll core ID: 25.4 mm (1 inch)

Max. /Min. Width (ribbon and roll core):

110/51 mm (4.33/2.0 inches)

Type: Wax base, mixed base and resin base

MEDIA SPECIFICATIONS

Non-continuous label paper, black label paper, tag paper, guide hole paper, notch paper or continuous label paper

Maximum/minimum width (label and liner): 114/20 mm (4.5/0.79 in)

Minimum label length:

Paper tearing mode: 5.0 mm (0.197 inches)

Self-peeling mode: 12.7 mm (0.5 inches)

Cutter Mode: 38.0mm (1.5 inches)

Thickness (label and liner):

3 mil to 10 mil (0.076mm to 0.255mm)

Configuration:

External roll paper or folding paper

Maximum diameter of label roll:

203.2 mm (8.0 inches)

Label roll core:

76 mm (3.0 inches)/25.4mm (1.0 inches)

PRINT INTERFACES

Standard:

• USB 2.0 host interface

• USB 2.0 device interface

• Ethernet interface, transmission rate: 10/100 Mbps

• RS-232, transmission rate up to 115.2 KB/s

It supports the following serial port protocols:

• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, RTS/CTS

• IPL: XON/XOFF, Honeywell Std. Protocol

Optional:

• WIFI: IEEE 802.11 a/b/g/n/ac, Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (THIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise)

• Parallel port: IEEE 1284

• Industrial interface: 8-bit INPUT/output, 4 analog signal relays and 1 RS-232/422/485 port

• Dual serial ports: RS-232, RS-422 and RS-485, and 20 mA current loop, GPIO card

SOFTWARE

Printer command languages:

Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2 (ZPL-II), DPL; XML can be enabled for SAP AII and Oracle WMS;

POWER SUPPLY

PFC power supply with the rated power of 100W AC voltage:

100V AC to 240V AC, 50Hz to 60Hz
