Honeywell PM42 TT 300dpi ETH/SER/USB

Code: 2010254PRINTER

The Honeywell PM42 is no longer available. We instead suggest the TSC MB240T.

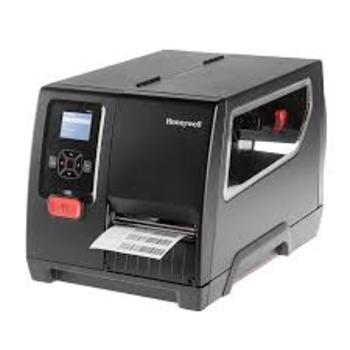

Honeywell PM42 300dpi Thermal Transfer Label Printer

The Honeywell PM42 300dpi mid-range industrial label printer is designed for maximum reliability and uptime. With a durable construction and an intuitive, user-friendly interface, it’s ideal for distribution center, warehouse, manufacturing, transportation and retail environments.

Unlike competitive printers that incorporate plastic components, the PM42 printer features an all-metal, die-cast aluminum construction for enhanced durability and reliability in the harshest industrial environments.

The PM42 printer provides fast, high-volume industrial thermal printing, making it an affordable choice for organisations printing 5,000–15,000 labels per day. With its class-leading print speeds up to 300 mm/s (12 ips), you’ll gain a clear productivity advantage.

Features:

Rugged - An all-metal housing ensures reliability and longer operating times, and can support heavy-duty printing.
Smart Printing Technology - Class-leading print speeds up to 300 mm/s (12 ips) enable high-volume printing during peak hours.
Easy-to-Use - A full-color LCD display with multi-language support provides an intuitive and convenient user interface.
Built-In Web Interface - An integrated web interface allows easy setup, monitoring and configuration through devices like mobile computers, tablets and smartphones.

PM42 300dpi Printer Specifications include:

Max. Width at 300 dpi
106 mm (4.17 in)

Max. Width at 406 dpi
104 mm (4.09 in)

Max. Length at 203 dpi
4.8 m (15.75 ft)

Max. Length at 406 dpi
1.2 m (3.94 ft)

PRINT SPEED
At 203 dpi/300 dpi
100 mm/s–300 mm/s (4 ips–12 ips)

PRINT RESOLUTION

At 300 dpi
11.8 dots/mm

MEDIA

Type
Labels and tags, linerless and linered media

Max./Min. Width
114 mm/19 mm (4.5 in/0.75 in)

Thickness
2.4 to 10.4 mil (with cutter: 3 to 7.6 mil)

Configuration
Roll-fed or fanfold

Sensing
Gap, notch, black mark, continuous

Label Roll Max. Diameter
213 mm (8.38 in)

Label Roll Core
38 mm–76 mm (1.5 in–3 in)

Ribbon Supports
Carbon Inside and Carbon Outside

Roll Max. Diameter
80 mm (3.15 in), approx. 450 m (1,476 ft)

Core ID
25 mm (1 in)

Type
Wax, mid-range, resin

MECHANICAL

Dimensions
484 mm x 292 mm x 283 mm (19.1 in x 11.5 in x 11.1 in)

Weight
12.1 kg (26.7 lbs)
