Flatbed Cutter FC500VC

Code: FC500VC
Label Power
$13194.50 (inc GST)
$11995.00 (exc GST)
Qty:

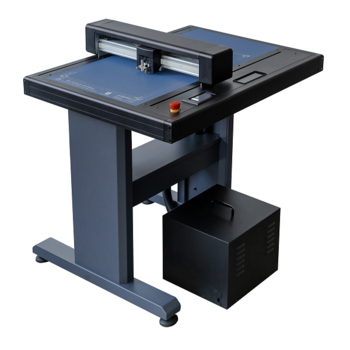

Label Power FC500VC Flatbed Label Cutter

The Label Power FC500VC flatbed cutter is ideal for small- and medium-sized production and samples of packaging, swing tickets, cards, and labels. It can process up to 600gsm of paper, cardboard, synthetics, films, and labels.

Using advanced digital contour cutting technology, no cutting dies are required. The Label Power flatbed cutter is able to process sheets to any shape instantly. It can handle full- and  half-depth cutting, creasing, and perforating.



Plug and Play

Simple installation with no additional drivers needed.



Compatible OS

Label Power FC500VC supports both Windows and Mac.



One-Click repeat function

Great for cutting the same job. Just replace paper, return to origin, and repeat the last page.



Multiple cut and crease

For thicker materials, a single pass may not provide enough pressure. The cutter can be programmed to cut or crease over multiple passes accurately.



Continuous cutting

For cutting more than 2 sheets, the first sheet can be changed while cutting the second sheet, reducing down time.





ITEM GD500
Configuration Digital servo system, Flatbed
Media hold-down method Vacuum suction
Maximum cuting speed 700 mm/s (10 to 700 mm/s )
Cutting pressure Tool 1: Max. 5.88N (600gf) Tool 2: Max. 5.88N (600cf)
Effective cutting area 495x685mm
Mountable media
(Y-axisdirection)
640mm
Minimum character size 5mm square
Mechanical resolution 0.005mm(5pm)
Programmable resolution HP-GL: 0.025mm
Repeatability 0.1mm
Standard interfaces USB2.0(FullSpeed) / U-Disk / Ethernet
Memory 32MB
Command sets HP-GL
Number of tools 3 tools
Tool types Cutter blade/Calibration tool/Creasing tool
Operating screen 4.3-inch touch LCD
Powersupply 100 to 240VAC, 50/60 Hz (Autoswitching)
Power consumption Max.150VA(machine), Max.550W(vacuum pump)
Operating environment Temperature:10 to 35 degrees C(35 to 95 degrees F)
Humidity 35 to 75% RH(non-condensing)
External dimensions 981(Y)x977(X)x1047(H)mm
Packaging dimensions 115x110x61cm (machine)
47x43x37cm (vacuum pump)
G.W. / N.W. 105kg/77kg (machine)
23/20kg (vaccum pump)
