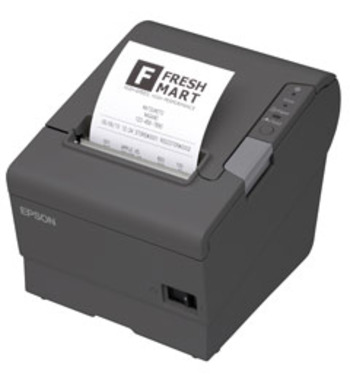

Epson TMT88VI ETH/USB/Ser Receipt Printer

Zoom

Code: 2005628PRINTERS

$719.95 (inc GST)
$654.50 (exc GST)

Qty:

Download pdf Brochure (123 KB)

Description Specifications Consumables

Epson TM-T88VI POS Thermal Receipt Printer

KEY FEATURES:

Fast and versatile printing up to 300mm/second
Same fast print speed for both text and graphics
Industry-first true grayscale printing of graphics
Low power consumption – Multiple configurations are ENERGY STAR qualified*
Best-in-class reliability – With a MCBF of 70 million lines
Increased flexibility – With a standard built-in USB in addition to having a UIB interface
Ease-of-use features – Including drop-in paper loading, autocutter and status LEDs
OS support for – Microsoft® Windows 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux
Handles 80 or 58mm paper roll sizes
Features print options to reduce paper usage
Improved cover design protects against foreign objects
Industry-leading four-year warranty

Software Development Kit Available
Epson now has Software Development Kits available for the creation of POS printer applications for iOS and Android devices.

High-speed, high-resolution text and graphics printing
Now you can speed customer throughput with the TM-T88V printer. It prints both receipts and graphics at the same high speed of up to 300mm per second—50% faster than the TM-T88IV. And it’s the first printer in the industry to offer 16 levels of grayscale to ensure clear, crisp graphics.

Reliability you can count on
With a MCBF of 70 million lines, 35% higher than the TM-T88IV, and an autocutter life of 2 million cuts, the TM-T88V delivers best-in-class reliability so critical in high volume environments.

Easy to use. Easy to maintain.
The TM-T88V is packed with easy-to-use features including drop-in paper loading, an autocutter, easy-to-read LEDs and an improved cover design to protect the printer from foreign objects.

More features, more flexibility
The TM-T88V also features auto speed adjustment for smoother printing, margin and line reduction functions to reduce paper usage and costs and more barcode options including 2D. In addition, it offers more flexibility with a standard built-in USB interface in addition to having a UIB interface.

ENERGY STAR qualified
Multiple configurations of the TM-T88V printer meet ENERGY STAR requirements, making it the only ENERGY STAR qualified POS thermal receipt printer that is available today.

Backed by the leader
The TM-T88V is backed by Epson’s industry-leading service and sup¬port programs and comes with a four-year warranty.

View Receipt Rolls Here

Model Name	TM-T88VI
Print Method	Thermal line printing
Print Font	9 x17 / 12 x 24
Column Capacity (columns)	56 / 42
Character Size (mm)	0.99 (W) x 2.4 (H) / 1.41 (W) x 3.39 (H)
Character Set	95 Alphanumeric, 16set International, 128 × 43 Graphic Bar code: UPC-A, UPC-E, JAN8(EAN), JAN13(EAN), CODE39, CODE93, CODE128, ITF, CODABAR, GS1-128, GS1 DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology
Character Per Inch	20 CPI / 15 CPI
Interfaces	RS-232, Bi-directional parallel, USB, USB Plus Power, Ethernet(10/100 Base-T), Wireless LAN(IEEE802.11b)
Data Buffer	4K bytes / 45 bytes
Print Speed	Max. 300mm/sec
Paper Dimensions (mm)	Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0
Paper Thickness (mm)	0.06 to 0.07
Power	24 VDC ± 7%
Power Consumption	Approx. 1.8 A (mean)
D.K.D. Function	2 drives
Reliability
Printer Mechanism Life	20 million lines
Auto cutter life	2 million cuts (when using OJI Paper PD150R or PD160R)
MTBF	360,000 hours
MCBF	70,000,000 lines
Overall Dimensions (mm)	145 (W) x 195 (D) x 148 (H)
Mass (Approx)	1.6 kg
EMC Standards	FCC, VCCI, CE marking, AS / NZS CISPR22 class A GOST-R
Power Supply (option)	PS-180
Option	Wall-hanging bracket WH-10, Power supply box OT-BX88V
Safety Standards	UL / CSA / EN / TÜV / GOST-R
