Printer

Print Method Line: inkjet, dot matrix

Print Resolution: 600 dpi x 1200 dpi

Print Speed: Up to 11.8" per second (300 mm/sec)

Colour Adjustment: Epson Preferred Color, Epson Standard, Epson Vivid Colour

Media Dispense Type: Auto cutter (scissor type), up to 1.5 million cuts

Printhead: Precision Core printhead, permanent

Paper-Feeding Mechanism: Life 500 km

Ink

Ink Type: UltraChrome DL SJIC48P pigment ink

Ink Colours: Cyan, Magenta, Yellow and Black (Gloss or Matte Black Options)

Ink Pack Configuration: Four (4) individual ink packs, 480 mL each pack2

*This printer is designed for use with genuine Epson packs only,

not third-party packs or ink*.

Media

Supported Media Types: Die-Cut Label, Full-Page Label, Continuous Label, Tag

Supported Media Constructions: Plain Paper, Textured Paper, Matte Paper, Synthetic, Glossy Paper, Glossy Film, High Glossy Paper

Die-Cut Label Gap: 0.12" – 0.24" (3 mm – 6 mm)

Gap Sensor Position: Adjustable; 0.12" – 2.20" (3 mm – 56 mm) from left side; pitch: 0.04" (1 mm)

Black Mark Sensor Position: Fixed position; approximately 0.49" (12.4 mm ) from left

Black Mark Width: 0.75" (19 mm) or more from paper edge

Black Mark Length: 0.16" to 1.0" (4 mm – 25.4 mm) with 0.16" (4 mm) or more of white space around the black mark

Maximum Print Width: 4.25" (108 mm)

Media Width:

Internal Roll Media (Min. – Max.): 1.0" – 4.40"

(25.4 mm – 112 mm)

External Roll Media, Fanfold (Min. – Max.):

1.97" – 4.40" (50 mm – 112 mm)

Media Length (Min. – Max.): 0.31" – 40"

(8 mm – 1,016 mm)

Media Thickness (Min. – Max.): 3.30 mils – 23.62 mils

(0.084 mm – 0.600 mm)

Internal Roll Media

Media Core Inner Diameter: 3.0" (76.2 mm)

Media Maximum Outer Diameter: 8.0" (203.2 mm)

Connectivity

USB: USB 3.0 (one port), USB 2.0 (one port)

Ethernet: 1000Base-T/100Base-TX/10Base-T

Wi-Fi: Optional Wi-Fi dongle available (OT-WL06)

General-Purpose I/O Port: D-Sub 25

Print Utilities and Remote Management Tools:

EpsonNet SetupManager

EpsonNet Config SE

Epson Device Admin

Epson Deployment Tool

PrinterSetting

Color Tone Matching Assistant

USB Printer Class Device Replacement

Epson Firmware Updater

Epson Cloud Solution PORT3

Production Monitor

WebConfig

General

Display: 2.7" color LCD

Operating Systems Supported:

Windows® 11

Windows 10 (32-bit/64-bit)

Windows 8.1 (32-bit/64-bit)

Windows Server® 2022

Windows Server 2019

Windows Server 2016

Windows Server 2012

Windows Server 2012 R2

OS X® 10.9.5 or later, macOS® 10.12 or later

CentOS® 7 (x86_64), Ubuntu 20.04 (x86_64)

Direct Command-Based Printing: Zebra® ZPL II® native

language support, plus command extensions, to allow for

colorization of data; ESC/Label color command language;

SAP® Direct Printing

Power Supply: AC Direct

Temperature: Operating 41 °F to 95 °F (5 °C to 35 °C), 20% to 80% RH

Storage (When Ink Is Loaded and Charged): Gloss Black

Ink: 5 °F – 104 °F (-15 °C – 40 °C), up to 120 H; Matte Black Ink:

14 °F – 104 °F (-10 °C – 40 °C),

Power Consumption

Operating: 83.0 W

Standby: 3.3 W

Power Off: 0.4 W

Rated Voltage: 100 V – 240 V

Rated Frequency: 50 Hz – 60 Hz

Acoustic Noise: Approx. 57 dB

EMI: FCC Class A, ICES-003 Class A

Warranty: 1-year Exchange warranty with Return for Repair

Extended Warranty options available

Weight and Dimensions

Printer Dimensions: (W x D x H) 24.4" x 15.4" x 16.5"

(620 mm x 392 mm x 420 mm)

Printer Weight: 79.4 lb (35 kg)

Packaging Weight and Dimensions:

Packaging Dimensions (W x D x H): 32.2" x 22.7" x 24.3"

(818 mm x 576 mm x 616 mm)

Packaging Weight 94.8 lb (43 kg)

Eco Features

RoHS compliant

What’s Included

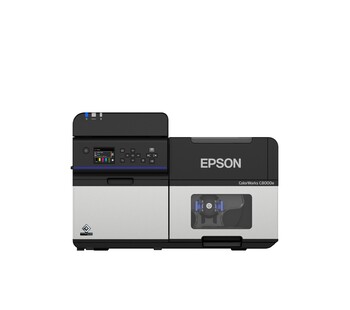

ColorWorks CW-C8010 printer (Gloss or Matte), four ink

packs (CMYK), maintenance box, AC power adapter and

cord, sample label roll and Start Here guide
