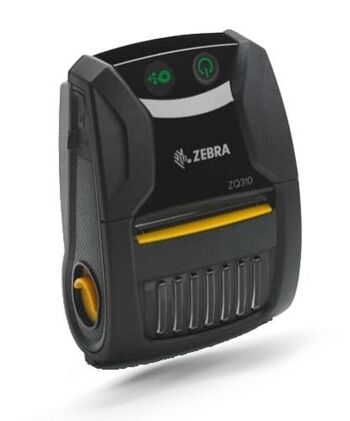

Zebra ZQ310
ZEBRA MOB ZQ310 PLUS 2IN OUTDOOR BT
To give your field workers the ability to print at the customer’s site, you need a mobile printer that can handle the elements, generate high quality receipts and labels in practically any environmental condition, guarantee power for the longest shift, with a ready-to-use remote management solution — all at a price that won’t break the bank. Introducing the ZQ300 Plus Series, the little mobile printer that can do it all. Available 58 mm (2 in.) and 80 mm (3 in.) models to ensure worldwide media compatibility, the compact and lightweight design enables easy one-handed operation, while the scuff resistant housing helps keep it looking like new. The elements are no match for the ZQ300 Plus Series; you can count on reliable high-quality printing, even in demanding outdoor conditions. Unique patented battery and battery management technologies deliver the longest battery cycle times for constant full-shift battery life. Zebra’s exclusive Bluetooth Remote Management application provides the powerful remote management capabilities you need to achieve superior uptime. And our optional Zebra OneCare service will help you maximize the availability and productivity of your ZQ300 Plus Series printers with unmatched from-the-manufacturer support. The ZQ300 Plus Series — the affordable little mobile printer that delivers big business value.
STANDARD FEATURES:
Field Service
• Invoices/Receipts
• Inventory Lists
• Schedule Printouts
• Parts Reconciliations
Transportation and Logistics
• Invoices
• Receipts
• Ticketing
Government
• Parking Violations
• E-citations
• Utility Meter Reading
• Postal Delivery Notices
DSD
• Invoices
• Proof of Delivery
Notices
• Receipts
• End-of-Day Reports
Courier
• Invoices
PRINTING SPECIFICATIONS
Operating System: Link-OS® printer operating system
Print Method: Direct Thermal
Resolution: 203 dpi/8 dots mm
Memory: 128MB RAM, 256MB Flash (48 MB User Available)
Battery: Li-Ion 2280 mAh, 7.2V, PowerPrecision+
Maximum Print Width:
ZQ310/ZQ310 Plus printer: 48 mm/1.89 in.
ZQ320/ZQ320 Plus printer: 72 mm/2.83 in.
Maximum Print Speed:
Up to 4 ips (100 mm/s)
Media Sensors: Black mark Gap (optional) (bar sensor is for the top side marks only)
Programming Languages:
CPCL, ZPL. The ZPL programming language
ensures full compatibility with many other Zebra printers
Cutter: Tear bar
Print Direction: Horizontal and vertical
MEDIA SPECIFICATIONS
Media Width:
ZQ310/ZQ310 Plus printer:
58 mm +0.75 mm/2.28 in. +0.02 in.; spacers
available to support 50.8 mm +0.75 mm/2 in. +0.02in.
ZQ320/ZQ320 Plus printer:
80 mm +0.75 mm/3.15 in. +0.02 in.; spacers
available to support 76 mm +0.75 mm/3 in. +0.02 in.
Maximum Roll Outside Diameter:
40 mm/1.57 in.
Media Holder:
Drop-in fixed media width (clamshell)
Media Thickness:
0.05334 mm/0.0021 in. to 0.16 mm/0.0063 in.
Media Types:
Direct thermal: receipt paper, linerless labels, labels
Minimum Receipt Length:
12.5 mm/0.49 in.
Maximum Receipt Length:
Unconstrained in line mode
Label Counter:
Odometer
PHYSICAL CHARACTERISTICS - DOUBLE SIDED
Dimensions ZQ310/ZQ310 Plus:
130 mm L x 93.5 mm W x 49.5 mm H
5.12 in. L x 3.68 in. W x 1.95 in. H
Volume ZQ310/ZQ310 Plus: 601.7 cc/36.7 cubic in.
Weight with battery ZQ310/ZQ310 Plus: 0.37 kg/0.81 lbs
ADDITIONAL OPTIONAL FEATURES:
Communication And Interfaces Capabilities
Bluetooth: BR/EDR, LE 4.2
USB 2.0: Client, Type-C™ connector
NFC: Passive NFC tag
