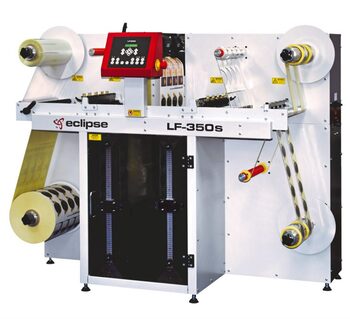

ECLIPSE LF350s Digital Label finishing machine
Code: ECLIPSE LF350s
GO LARGE… In-line, fast track Label Printing – Cutting – Finishing Accurate, Fast, Economical – The LF350s has dual cutting and barcode options, reading for different shape selection. Label lengths up to 800mm (33.46”)
Large floor standing machine can handle large bulk orders and short runs. Developed using Summa technology – Cutting dies are not required !
The Eclipse LF350s benefits from being designed and developed specifically for end users wishing to produce large bulk orders.
- Accurate: Precision Engineering
- Flexible: Module Options
- Space Saving: Large floor standing
- Capacity: Large Media Web
- Easy-to-Use: Developed with state-of-the-art software & management systems

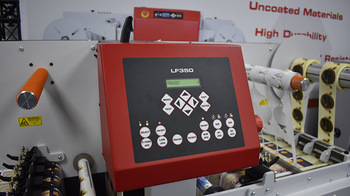

- Easy-to-Use: The operator panel allows to-set and recall parameters, rotating speed, & position
- Producers: Different Shape Label (automatically changing from one to another)
- Operates: Dual cutting heads | Barcode reading
- Easy-to-Use: Fluid simulation program guarantees the best inline label production
- Low Maintenance: Machine uses position indicators to recall the head & roll positions, making any format change faster & easier
| MEDIA WIDTH | 350mm (13.7”) |
| LINEAR CUT SPEED | Dependent on graphic |
| CUT SPEED | 800 – 400 Axial |
| CUT TYPE | Single or twin head drag knife and tangential emulation |
| CUT to REGISTRATION | Single point registration mark |
| CUT ABILITY | Both printed and unprinted media |
| MAX LABEL LENGTH | 800mm (31.5”) repeat |
| LAMINATION | Unsupported laminate roll – Supported rewind |
| MAXIMUM ROLL DIAMETER | 450mm (17.7”) |
| WASTE MATRIX | Removal and rewind – Twin reversible rewind with 76mm cores. Selvedge removal and waster rewind |
| DUAL | Reversable finished label rewind |
| REWIND ROLL CORE SIZE | 76mm (3”) |
| INTERFACE & SOFTWARE | WinPlot (Windows 0S) cut software, cutter control parameter software. Plug-ins for CorelDraw and Adobe Illustrator |
| POWER SUPPLY | Single phase 110/240VAC, frequency 50/60HZ |
| DIMENSIONS | Width: 1740mm (68.5”) – Depth: 910mm (35.8”) – Height 1340mm (52.8”) |
| WEIGHT | 360kg |
